LCT 511-BB

Maximum specialization for maximum optimization

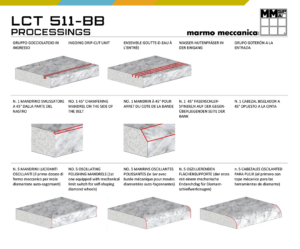

This particular version of the LCT vertical edge polishing machine has been created to shape and polish only BIRD BEAK (Demi-Bullnose) profiles and to make ANTI-SLIP GROOVES, guaranteeing high productivity at low costs in extremely compact dimensions.

Dimensions mm 2950 x 1300
Potenza Kw 17
RIGHT TO LEFT working wise only

Equipment:
- no. 1 ingoing DRIP-CUTTING MANDREL ON THE SIDE OF THE BELT, vertically and horizontally adjustable, on which it is possible to mount cutting tools, among which the MULTI-BLADE tool to obtain anti-slippery cuts;
- no. 1 ingoing 45° CHAMFERING MANDREL ON THE OPPOSITE SIDE OF THE BELT, fort he pre-cut;
- no. 5 OSCILLATING POLISHING MANDRELS, with hydraulic motors and pneumatic actioning. The first one equipped with a mechanical limit switch to carry out self shaped profiles by the use of a cup shaped diamond wheels for 15mm and 25 mm radius.
Company
Marmo Meccanica S.p.A.

Marmo Meccanica designs and manufactures edge polishing machines and bridge saws for natural stone, artificial stones, and ceramic materials. Almost 50 years among the world-leading brands in the stone technologies industry.
